Product Introduction：
PPM-T330A sputtered film high temperature pressure transmitter uses ion beam sputtered film technology, all stainless steel integrated structure, high sensitivity pressure core, fully welded and sealed in stainless steel housing, withstands frequent, 5 times pressure overload and accurate.High temperature and wide temperature range, mainly used in high-end industrial sites and military equipment. With low power consumption, no hysteresis, good repeatability and so on. This series supports full parameter customization service.
Applications :
PPM-T330A sputtered film high temperature pressure transducer is widely used in diesel engine, heat generating unit, steam turbine, water turbine, locomotive braking system,oil well instruments, downhole instruments, uphole platforms,energy management system,hydraulic machine, testing machine, crane hydraulic system.
Technical Parameters :
| Measured medium : | gas, liquid and steam |
| Pressure Type : | Sealed Reference Pressure, Ventilator Pressure, Absolute Pressure (Customized) |
| Pressure Range: | Any range between 0 ～ 0.6MPa… 300MPa |
| Power supply : | 9-32VDC (24VDC recommended) |
| Output signal : | 4 ～ 20mA, 0 ～ 5VDC, 1 ～ 5VDC, 0 ～ 10VDC, 0.5 ～ 4.5 VDC can be selected |
| Mounting thread : | M20 × 1.5, M14 × 1.5, G1 / 4, 1 / 4NPT, 1 / 2NPT |
| Electrical interface: | Hirschmann connector, aerial plug, direct outlet |
| Non-linearity : | ≤0.05% FS optional |
| Repeatability : | ≤0.05% FS optional |
| Accuracy: | ± 0.1% FS, ± 0.2% FS, ± 0.5% FS optional |
| Long-term stability : | 0.1% FS / year |
| Working medium temperature : | -45 ～ + 145 ℃ 250 ℃ customized |
| Working environment temperature : | -55 ～ + 145 ℃ |

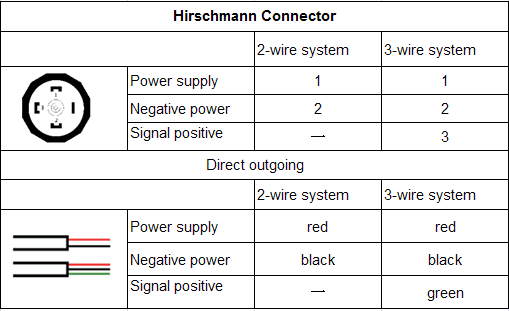

Definition of wiring:
Dimensions in mm :
