Application:
PPM227-LS3-2 load cells are suitable for belt scale, hopper scale, truck scale and other electronic weighing devices.
|
Capability
|
0.5~100 t
|
|
Comprehensive precision
|
0.05%FS
|
|
Sensitivity
|
2.0±0.005 mV/V
|
|
Creep
|
±0.05%FS/30min
|
|
Zero Output
|
±1%FS
|
|
Temperature effect on zero
|
±0.05%FS/10ºC
|
|
Temperature effect on output
|
±0.05%FS/10ºC
|
|
Operating temperature range
|
-20ºC~+65ºC
|
|
Input resistance
|
380±10Ω or 750±15Ω
|
|
Output resistance
|
350±3Ω or 700±5Ω
|
|
Insulation resistance
|
>5000MΩ
|
|
Safe overload
|
150%FS
|
|
Bridge voltage
|
10V DC
|
|
Material
|
Stainless steel or Alloy steel
|
|
Protection class
|
IP 65
|
|
Electronic connection
|
Input+: Red Input-:Black
Output+: Green Output-:White |

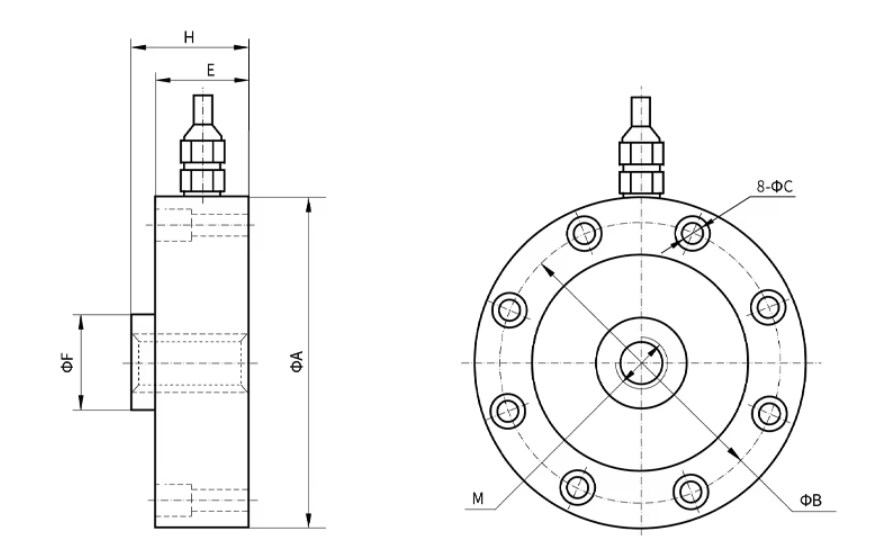

Dimensions in mm :
