Applications:
Petroleum, chemical, metallurgy,machinery, electricity, steel,glass, ceramics, heat treatment.
Technical Parameters :
| Measuring range: | -200 ～ 650 ℃ |
| Power supply : | 4-20mA |
| Output: | 4-20mA, 0-5VDC, 0-10VDC are optional |
| Accuracy: | 0.2%, 0.5% optional |
| Working ambient temperature: | -40-85 ℃ |
| Ambient temperature influence: | 0.25% / 10 ℃ |
| Temperature measuring element: | Pt100, Pt1000, T, K are optional |
| Protection tube diameter: | Ф4 ～ Ф16, Ф18, Ф20, Ф22, Ф28, Ф35, Ф40 or specified |
| Process connection method: | No fixing device, fixed thread, movable thread, movable flange, fixed flange GB / ANSI standard optional |
| Insertion length : | 50, 100, 150, 200, 300, 400, 500, 750, 1000 or specified |
| Protection tube material : | 316L stainless steel, nickel alloy |
| Nominal pressure: | 20MPa, ≤10MPa, ≤4.0MPa, ≤2.5MPa, normal pressure optional |
| Protection class: | IP65 |
| Thermal response time: | 0.3S |
| Ambient humidity: | 95% RH, non-condensing |

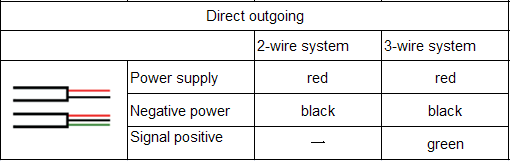

Definition of wiring:

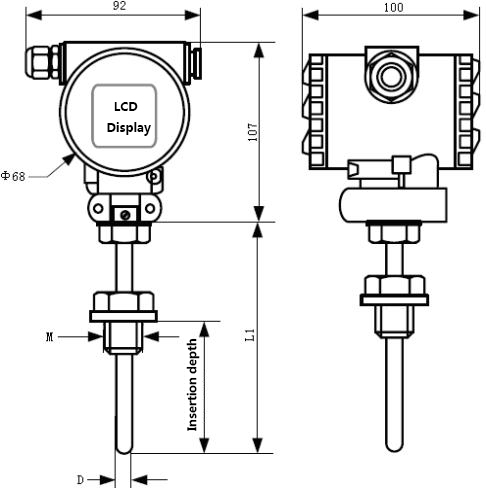

Dimensions in mm :
